Ubiquiti AirOS 5.6 Cacti Templates

16:20 Posted by Jurgens Krause , , , , , , , , , 22 comments

After many requests and much procrastination, here are the templates for AirOS 5.6 for Cacti.

You will now be able to graph individual client connection details directly from the AP!

Graphs Available:
Access Point / Client Direct Polling:
  • CPU
  • Combined Link Details
  • Uptime
  • Interface Traffic
  • Air Rate
  • Signal
  • Airmax
  • Air Rate
Connected Client Graphs:
  • Combined Link Details
  • Airmax
  • Traffic
  • Signal
  • Air Rate
AP Only
  • Station Count
Installation:

Download from DropBox

Remember to put the following files into /cacti/resource/snmp_queries

AirOS5.6-AP.xml
AirOS5.6-CPE.xml

 Combined Link Details: AP / Client / Client on AP

Station Count: AP Only

Interface Traffic: AP / Client / Client on AP

Airmax: AP / Client / Client on AP

Air Rate: AP / Client / Client on AP

CPU Usage: AP / Client

Signal: AP / Client / Client on AP

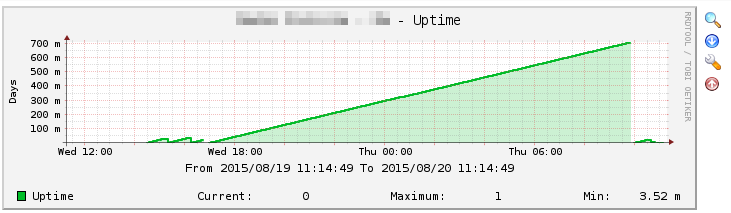

Uptime: AP / Client


22 comments:

  1. Unknown6 August 2015 at 12:54


    Hello there,
    I've tested now
    It does not work!
    if I delete all cacti reboot the old data and then import the new data then I get when importing two errors each template

    http://prntscr.com/81ecbo
    http://prntscr.com/81ecfe

    http://prntscr.com/81eckv
    http://prntscr.com/81eco3

    furthermore will import after the name changed "interfaces.xml" on "INTERFACE.XML"?
    WHY THIS?
    when I write it back no more recording and I have to back up your system back.

    There is a mistake !!

    ReplyDelete
    Replies
    1. Jurgens Krause6 August 2015 at 13:28

      I am investigating, the interfaces.xml was a stupid mistake on my part

      Delete
  2. Unknown6 August 2015 at 13:41

    So the problem is not with me?
    OK
    I will look no further.
    I thought the problem is with me!
    If you need info please contact me!

    ReplyDelete
    Replies
    1. Jurgens Krause6 August 2015 at 13:43

      Hi Georg,

      I have fixed the problem, and imported on a different cacti server. It worked perfectly, so please try again.

      Delete
    2. Unknown6 August 2015 at 22:18

      Hi!

      Interface is now OK
      no filename change!

      but a new error
      http://prntscr.com/81niy9

      Data Query [AirOS 5.6 AP]
      Error in data query.
      and
      Data Query [AirOS 5.6 CPE]
      Error in data query.

      Delete
  3. Jurgens Krause7 August 2015 at 07:05

    Did you copy:
    AirOS5.6-AP.xml
    AirOS5.6-CPE.xml

    into /cacti/resource/snmp_queries
    ?

    ReplyDelete
  4. Unknown7 August 2015 at 11:04

    I install a new Instans and Test a new cacti Installation and give Information to you.....

    ReplyDelete
  5. Unknown7 August 2015 at 14:23

    It's not working!
    Sorry that I always disturb
    is still the same error

    ReplyDelete
  6. Unknown7 August 2015 at 20:32

    Hello!
    have an old backup of 12.2014 hergenommen before I played with AirOS 5.6 around . and now everything goes !

    their job well done !

    I live my system destroys something your new template is not there ... now I have 7 months to go back and start over a great pity !

    Thank you do for her !!!!

    ReplyDelete
  7. Unknown8 August 2015 at 08:50

    have now exported the data from the broken live system and the old system is now importing anything goes!

    They know how to quickly update to the new version cacti?

    Thank you for your super work

    ReplyDelete
  8. Unknown10 August 2015 at 07:56

    Hello!
    It's all super now !!!! very good
    I also found the cause it was the first restore faulty there was already a system error in the cacti.

    I have a request! Unfortunately I'll not together ...

    You can create something like this.
    http://prntscr.com/82vbs9

    ReplyDelete
  9. Unknown17 August 2015 at 09:30

    Hello there,
    Unfortunately, I have to take it all back.
    your templates do not go all!
    I now have a new debian system 8 instaliert with the latest version of cacti. it comes only CPE Link Details and CPE signal!
    What does not work is AP (Client) - signal, AP (Client) - Link Details, AP (Client) - Airmax, AP (Client) - Air Rate

    http://prntscr.com/85jd1t
    http://prntscr.com/85jdbn
    http://prntscr.com/85jdl9
    http://prntscr.com/85jdtj

    See your pictures from different are the certainly the originals?

    Sorry, I thought at first it's my system that does not work properly. However, your template does not fit.

    mfg

    ReplyDelete
    Replies
    1. Jurgens Krause17 August 2015 at 10:08

      if you like, you can contact me on jurgenskrause at gmail dot com
      I can try to help you using teamviewer

      Delete
  10. Unknown17 August 2015 at 14:19

    i have send a mail to you!

    ReplyDelete
  11. David Mitchell28 November 2015 at 03:27

    Thanks for posting these templates, and offering continuing support for them. They've helped me a lot.

    ReplyDelete
  12. AMARNATH17 January 2016 at 18:08

    i tray upload AirOS5.6-AP and AirOS5.6-CPE it not import why and it's cacti_host_template_ubiquiti_airos_5_6_ap upload is import but some error show please help me..

    ReplyDelete
  13. Ty27 February 2016 at 01:22

    Getting:
    + Found Dependency: (Data Template Item) wlSignal
    + Found Dependency: (GPRINT Preset) Normal
    + Unmet Dependency: (Data Template Item)
    + Unmet Dependency: (Data Template Item)
    + Unmet Dependency: (Data Template Item)
    + Unmet Dependency: (Data Template Item)
    + Unmet Dependency: (Data Template Item)
    + Found Dependency: (Data Template Item) ubntRadioFreq
    When importing cacti_host_template_ubiquiti_airos_5_6_ap.xml

    And while importing: cacti_host_template_ubiquiti_airos_5_6_cpe.xml
    + Found Dependency: (Data Template Item) wlSignal
    + Found Dependency: (GPRINT Preset) Normal
    + Unmet Dependency: (Data Template Item)
    + Unmet Dependency: (Data Template Item)
    + Unmet Dependency: (Data Template Item)
    + Unmet Dependency: (Data Template Item)
    + Unmet Dependency: (Data Template Item)
    + Found Dependency: (Data Template Item) ubntRadioFreq

    Everything else is a success. What am I missing? This is a complete new install on Ubuntu 14.04.3. I'm kinda new to Cacti still, gonna keep doing further testing.

    ReplyDelete
  14. Unknown6 October 2016 at 02:06

    So I'm super new here... I copied the files to the directory, now what?

    ReplyDelete
  15. Francisco29 January 2017 at 17:21

    Hi from Spain Jurgens Krause!

    ¿Has thinked in a update for new FW 6.0? If yes, thanks a lot. I've use your templates for 5.6 and work perfect.

    Great work.

    ReplyDelete
  16. Unknown12 June 2017 at 13:01

    Hello. Were can I download the templates and does they work for AirOS 8? Thanks a lot

    ReplyDelete
  17. Ye-Olde23 August 2017 at 22:50

    well,
    its working with Device Model: AirGrid M5 HP Version: v6.0.6 (XW)
    everything, except a graph called "link details".

    Cudos !!

    ReplyDelete
  18. Ye-Olde25 August 2017 at 21:16

    while importing xml files, i got these errors...

    [success] AirOS 5.6 - AP/Client - Signal (alt) [update]
    + Found Dependency: (Data Template Item) wlSignal
    + Found Dependency: (GPRINT Preset) Normal
    + Unmet Dependency: (Data Template Item)
    + Unmet Dependency: (Data Template Item)
    + Unmet Dependency: (Data Template Item)
    + Unmet Dependency: (Data Template Item)
    + Unmet Dependency: (Data Template Item)
    + Found Dependency: (Data Template Item) ubntRadioFreq

    ReplyDelete
